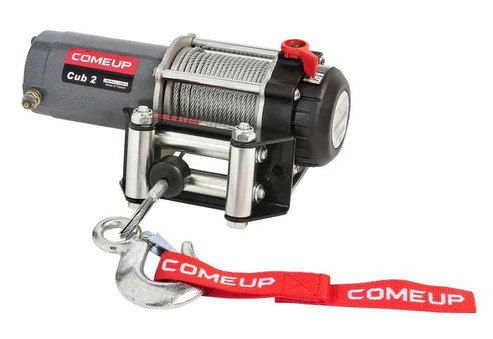

- 2,000 lb (907 kg) line pull.
- Power in and power out.
- Winch drum is centered to avoid rope interference and provide a streamlined appearance.
- Mechanical load holding and dynamic brake for 100% braking.
- High efficiency permanent magnet motor is sealed and has low amperage draw.
- Full metal 3-stage planetary gears for greater pulling force.
- Cam activated clutch (freespooling) for quick and easy engagement/disengagement.
- Weather sealed contactor provides superior water resistance and lower amperage draw.
Specifications:
| Rated Line Pull | 2,000 lbs (907 kg) single line |
| Motor | 600 w / 0.8 hp 12V permanent magnet |
| Gear Ratio | 3-Stage Planetary 103:1 |
| Clutch | (freespooling) Cam activated |
| Brake | Mechanical & Dynamic |
| Winch Construction | Aluminum Die Cast Drum and Strong Steel Housings |
| Drum Size | 1.5” x 3” (38 x 75 mm) |
| Control | Handlebar rocker switch |
| Rope Type | Galvanized aircraft A7 x 19 |
| Rope Size | 5/32” x 50' (4.0 mm x 15.2 m) |
| Mounting Bolt Pattern | 3” x 4.9” (76 x 124 mm) |
| Winch Weight | 14.3 lbs (6.5 kg) |
| Gross Weight | 22.0 lbs (10 kg) |
| Box Dimensions | 11.7" x 8.8" x 5.5" (296 x 223 x 140 mm) |
Warning
Winches are not to be used for the lifting or moving of persons.
The rated line pull shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 10 wraps from the drum.
Warranty
Each new winch is guaranteed against defects in workmanship and material defects for a stipulate period from date of purchase.
*Powersports Winch: Limited lifetime warranty for mechanical components,
One (1) year warranty for electrical components,
SYNTHETIC ROPES ARE NOT INCLUDED UNDER WARRANTY.
