- Fast, powerful and high efficiency performance.
- Heavy duty series wound motor delivers superior torque output and faster line speed.
- Submersible sealed contactor with silver-alloy contact pads, thick copper buss bars and submersible construction ensures weather resistance.
- Patented Cone Brake Structure – “Brake outside the drum” – allows rapid heat dispersion.
- Tough Aluminum alloy housings.
- Industrial grade waterproof remote control comes with a thermometric LED indicator on the hand-held switch that automatically alerts when the motor is over-heated.
- Rugged and quiet 3-stage steel planetary gears for maximum mechanical efficiency.
- An ergonomic T-handle positively engages the free spool clutch through multiple evenly spaced locking holes for rapid rope payout. The entire clutch can be rotated to reposition the T-handle in multiple locations.
S
| Rated Line Pull | 12,000 lbs (5,443 kg) single line |
| Motor | 5.6 hp / 4,180 w 12V Series Wound |
| Gear Ratio | 3-Stage Planetary 261:1 |
| Clutch | (freespooling) Rotating Ring Gear |
| Brake | (outside the drum) Automatic, full load CBS (Cone Brake Structure) |
| Winch Construction | Aluminum Die Cast Housing with Steel Drum |
| Drum Size | 3.5” x 8.1” (89 x 206 mm) |
| Control | Waterproof remote with thermometric indicator LED w/17' (5 m) cord |
| Rope Type | Galvanized aircraft A7 x 19 |
| Rope Size | 3/8” x 125' (9.5 mm x 38 m) |

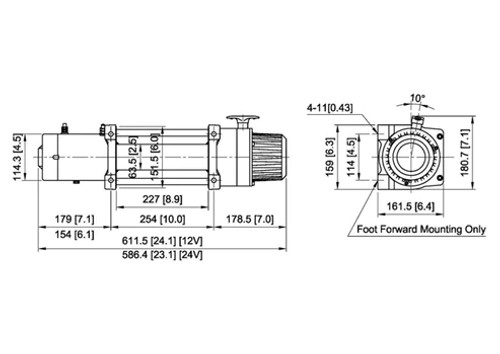

| Mounting Bolt Pattern | 10” x 4.5” (254 x 114 mm), 10” x 6.5” (254 x 165 mm) |
| Winch Weight | 121 lbs (55 kg) |
| Gross Weight | 147.7 lbs (67 kg) |
| Box Dimensions | 26.8” x 8.2” x 17.8” (682 x 209 x 453 mm) |
Warning
Winches are not to be used for the lifting or moving of persons.
The rated line pull shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 5 wraps from the drum.
Warranty
Each new winch is guaranteed against defects in workmanship and material defects for a stipulate period from date of purchase.
*Automotive Winch: Limited lifetime warranty for mechanical components,
*One (1) year warranty for electrical components,
WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY.
