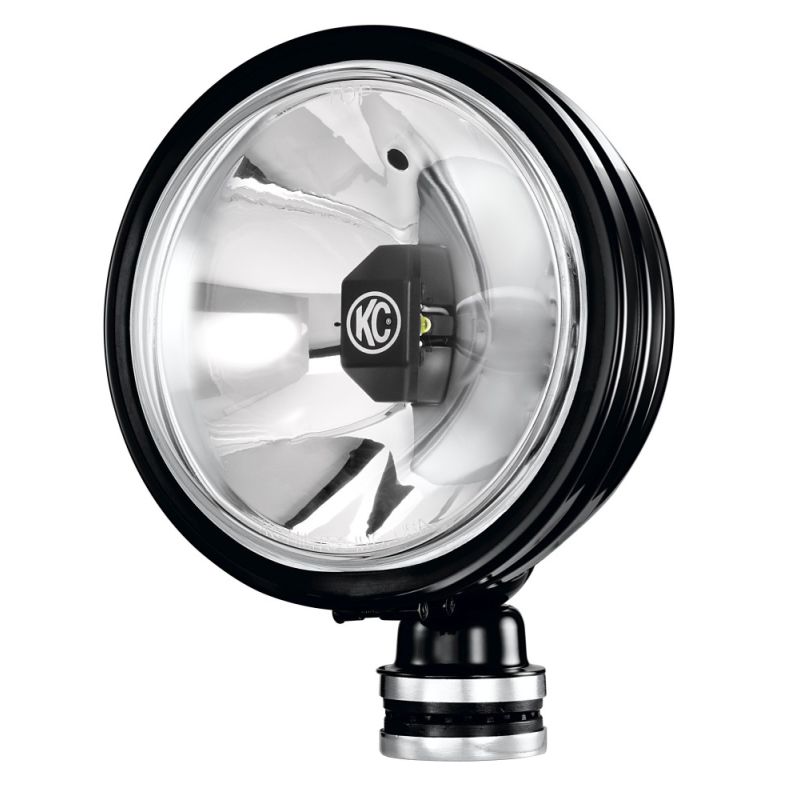

KC Hilites 6" Gravity LED Daylighter feature bright CREE LEDs in a spot beam pattern for focused width and distance illumination. Black steel housing, polycarbonate lens with FLEXible base for accurate aiming.
FEATURES
-20W Gravity® LED G6 optical insert
-Black Powder Coated Steel housing
-Hard Coated Polycarbonate Lens
-Spot Beam Pattern
LIGHT PERFORMANCE (PER LIGHT)
-Raw Lumens: 2,300 lm
-Lux @ 10 Meters: 2,150 lx
-Candela: 215,000 cd
-Beam Distance (Meters): 972m
SPECIFICATIONS (PER LIGHT)
-Wattage: 20W
-LED Source: CREE XPL HD LED
-Amp Draw: 1.63A
-Voltage: 9V-32V
-IP Rating: IP67
-Product Dimensions: W - 6.22" x H - 8.42" x D - 5.38"
Gravity® EXTREME OUTPUT AND EFFICIENCY
Gravity® Daylighters are powered by our G6 LED optical inserts which deliver an incredible 2,150 lx @10m using only 1.67A per light. Our patented GRD (Gravity® Reflective Diode) system aims the LEDs into the precision reflectors to capture all the light and project it forward.
AVAILABLE BEAM PATTERN AND ADVANTAGES
Different beam patterns offer advantages depending on your specific lighting needs.
-20W Gravity® LED G6 optical insert
-Black Powder Coated Steel housing
-Hard Coated Polycarbonate Lens
-Spot Beam Pattern
LIGHT PERFORMANCE (PER LIGHT)
-Raw Lumens: 2,300 lm
-Lux @ 10 Meters: 2,150 lx
-Candela: 215,000 cd
-Beam Distance (Meters): 972m
SPECIFICATIONS (PER LIGHT)
-Wattage: 20W
-LED Source: CREE XPL HD LED
-Amp Draw: 1.63A
-Voltage: 9V-32V
-IP Rating: IP67
-Product Dimensions: W - 6.22" x H - 8.42" x D - 5.38"
Gravity® EXTREME OUTPUT AND EFFICIENCY
Gravity® Daylighters are powered by our G6 LED optical inserts which deliver an incredible 2,150 lx @10m using only 1.67A per light. Our patented GRD (Gravity® Reflective Diode) system aims the LEDs into the precision reflectors to capture all the light and project it forward.
AVAILABLE BEAM PATTERN AND ADVANTAGES
Different beam patterns offer advantages depending on your specific lighting needs.
Spot Beam - Provides focused bright light for maximum forward distance and high speed visibility.
Driving Beam- SAE & ECE street legal beams provide added peripheral visibility and while reaching further than stock lights.
ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION
Our time-tested Daylighter shock mount system is resilient and allows users to accurately aim their lights ensuring beam stability and consistency.
RACE PROVEN STRENGTH & DURABILITY
The race-proven steel housing combined with our IP67 rated Gravity® G6 LED optical insert creates an extremely strong and durable combination that will withstand the harshest of environments and terrains.
ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION
Our time-tested Daylighter shock mount system is resilient and allows users to accurately aim their lights ensuring beam stability and consistency.
RACE PROVEN STRENGTH & DURABILITY
The race-proven steel housing combined with our IP67 rated Gravity® G6 LED optical insert creates an extremely strong and durable combination that will withstand the harshest of environments and terrains.
Harness & Wiring
Please keep in mind that the wiring harness is not included in the Single version of this light, but it is included in the Pair Pack
